Description

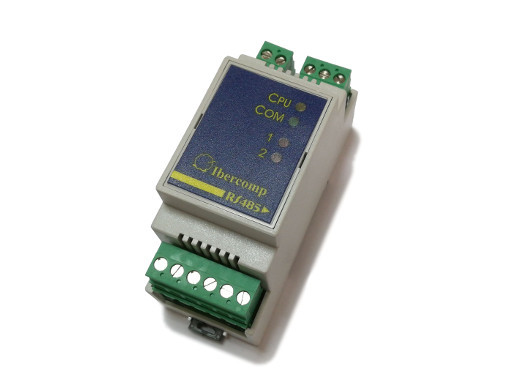

ModBus Module with 2 Digital Inputs and 1 Digital Output
This ModBus module is designed to offer versatility and reliability in control and automation systems. Its features and detailed technical specifications are presented below.
- Digital inputs:
- 2 independent optocoupled inputs.
- 230 VDC/VAC (configurable for other voltages upon request).
- Includes an anti-bounce filter to ensure accurate readings, ideal for connections to limit switches, pushbuttons, relays, etc.
- Digital output:
- 1-contact relay output.
- It can switch up to 5A at 250 VAC.
- The relay is optocoupled from the electronics and has a varistor to protect its contacts.
Functionalities and Configuration
- The digital inputs can be activated or deactivated externally.
- The module has a non-volatile memory that allows the following parameters to be pre-programmed:
- Configuration of the initial state of the relay when the equipment is turned on.
- Definition of the relay status when the presence of the control CPU is not detected.
Common Applications
This module is suitable for a variety of applications in industrial automation and control systems, including:
- Monitoring and control of inputs and outputs in industrial machinery.
- Management of electrical systems in buildings.
- Integration in security systems for access control and alarms.
Related Products
It can be integrated with other products in our ModBus line of solutions, including additional sensors, input/output modules and controllers, to create complete and efficient automation systems.
